The remedy for damaged roads

Blow-Patcher patch machines

The schäfer-technic Blow-Patcher is a state-of-the-art machine that meets the technical requirements for practical operation on the building site.

The arm with mixing head is an ergonomic tool for repairing localised damage such as potholes. The machine has reservoirs for chippings, binding agent, water and air, which are metered through the mixing head using a computer.

Continuous development of the machinery and metering control guarantees a consistent and reproducible mixing quality.

Special materials are used which minimise wear and maintenance, thereby ensuring the machine is ready for deployment at all times. The design was mainly focused on intuitive and convenient handling of the machine.

To increase the safety for operating personnel, the arm with mixing head can be installed in front of the truck. In this case, the user can conveniently control and operate the boom from the driver cab using a joystick.

The working method using the schäfer-technic Blow-Patcher provides an efficient solution with high quality.

The machine can be used independently of the asphalt surface. It offers high performance and enables precisely targeted delivery of the mixture to the damaged area. Thus, the schäfer-technic Blow-Patcher supports you in achieving your objective of using materials and resources sparingly.

The fast working method also allows fast reopening of the repaired area for traffic.

PREVNEXT

Showroom

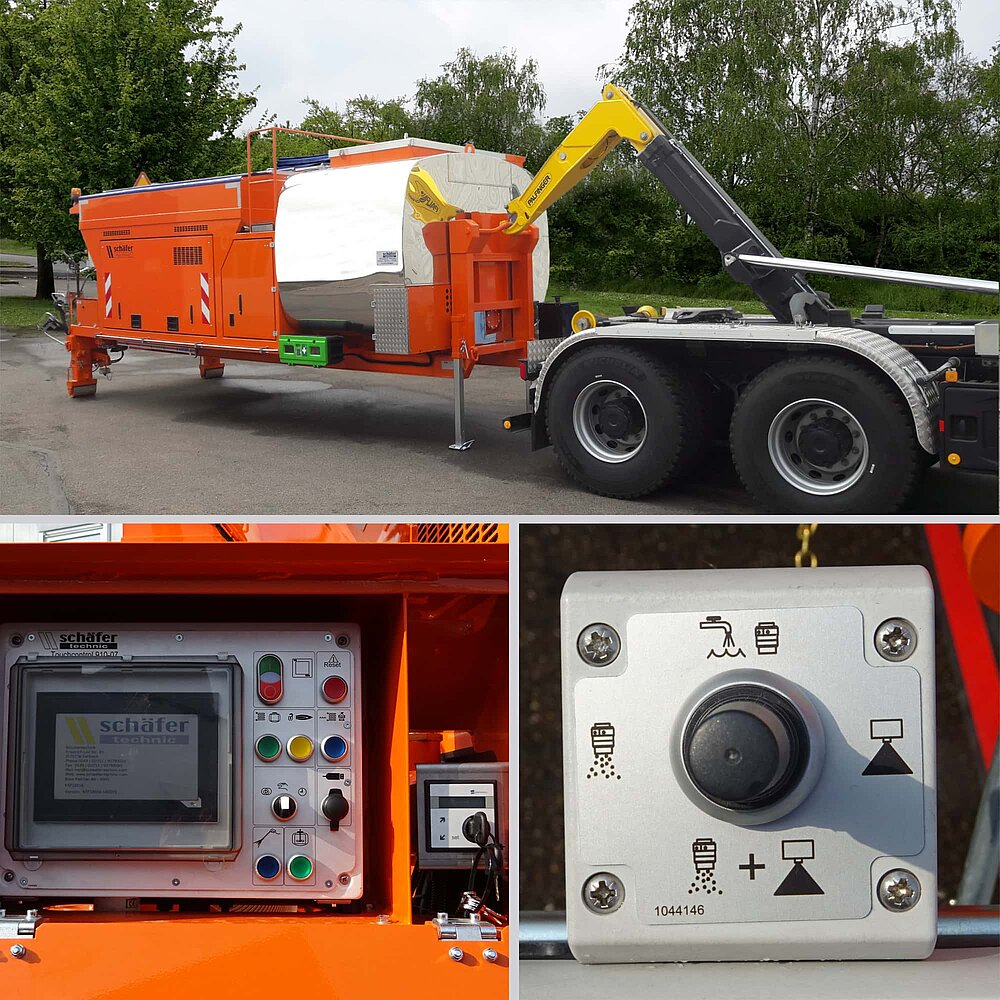

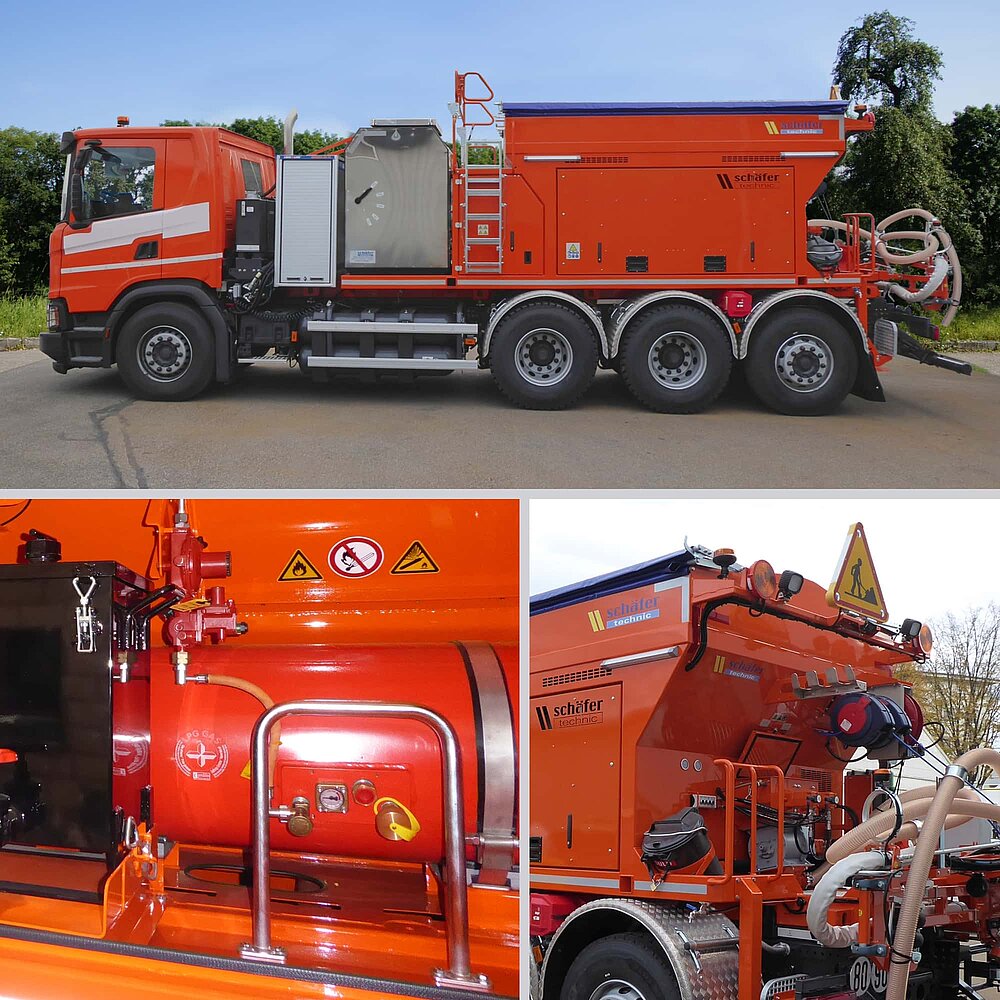

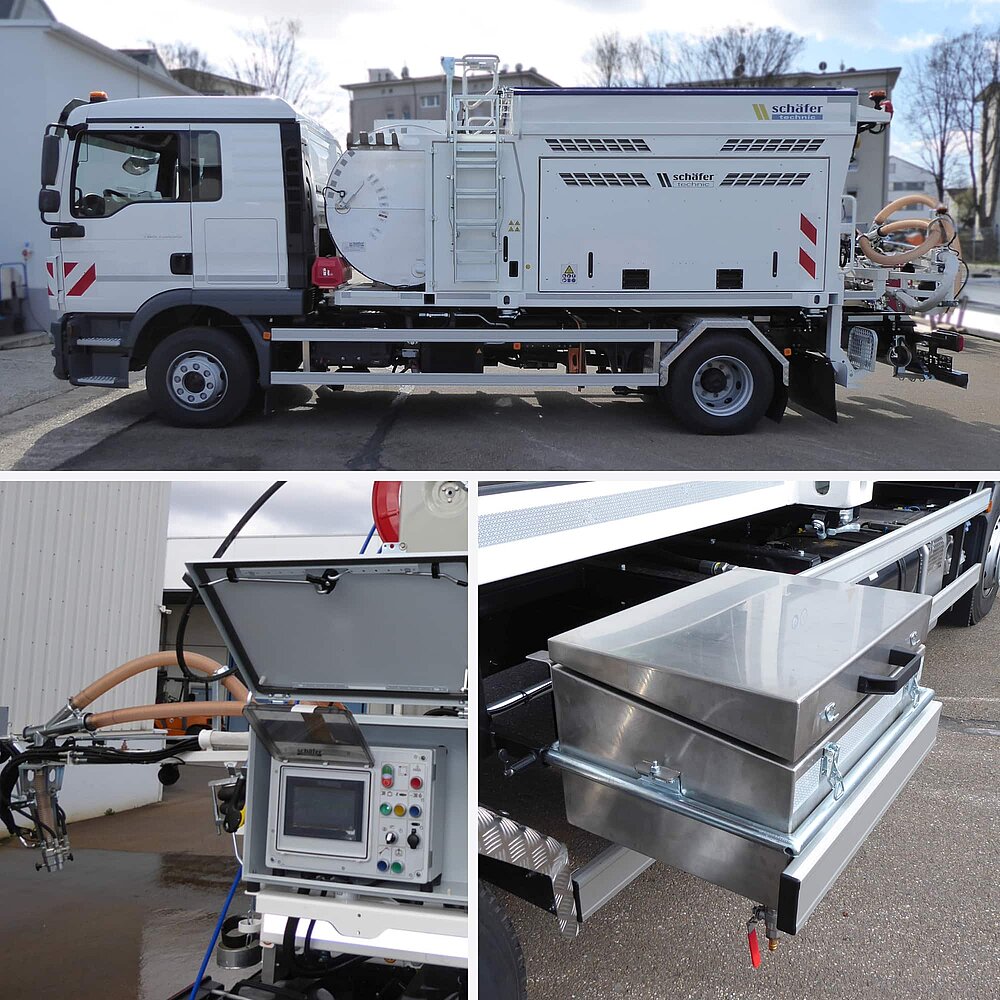

Blow-Patcher type A3

  • Interchangeable attachment with twist lock
  • Truck chassis 15 t
  • Powered by truck engine
  • 2 chipping containers, each 1,500 l
  • Binding agent tank 1,500 l
  • Agitator in binding agent tank
  • Manual arm with mixing head
  • Automatic levelling rear arm
  • Mixing output 25-85 kg/min
  • Auxiliary water heater for pump, filter
    and mixing head
  • Cleaning function with
    high-pressure water
  • Cleaning station
  • Compressed air gun with hose reel
  • Peripheral lighting for night work

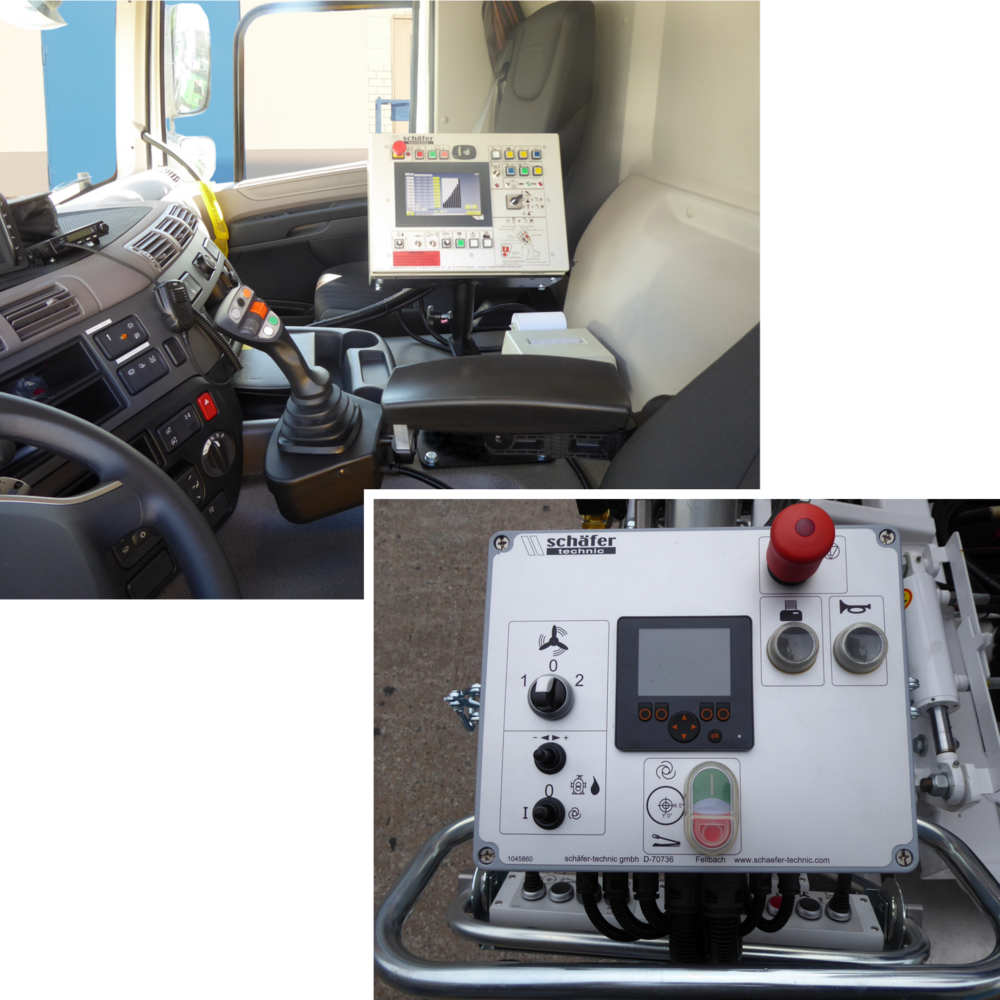

  • Touch-Control:
    • Machine control
    • Automatic dosing
    • Construction site organisation with
      process data acquisition
    • Data transfer (USB, cloud etc.)
    • Print logs

Showroom

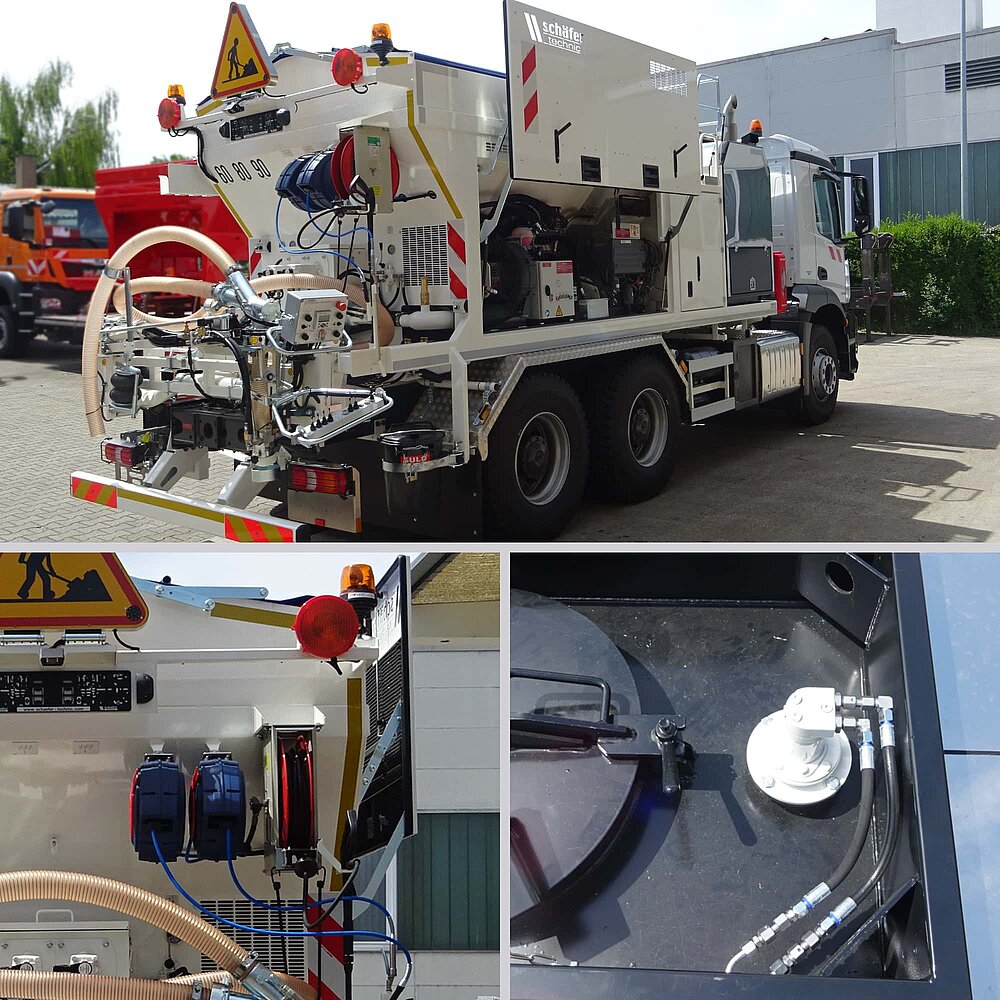

Blow-Patcher type A6

  • Interchangeable attachment with twist lock
  • Truck chassis 32 t
  • Powered by truck engine
  • 2 chipping containers, each 3,000 l
  • Binding agent tank 2,000 l
  • Agitator in binding agent tank
  • Manual arm with mixing head
  • Automatic levelling rear arm
  • Electric gas burner for binding agent
  • Mixing output 25-85 kg/min
  • Mixing head with function control
  • Peripheral lighting for night work
  • Touch-Control:
    • Machine control
    • Automatic dosing
    • Construction site organisation with
      process data acquisition
    • Data transfer (USB, cloud etc.)
    • Print logs

Showroom

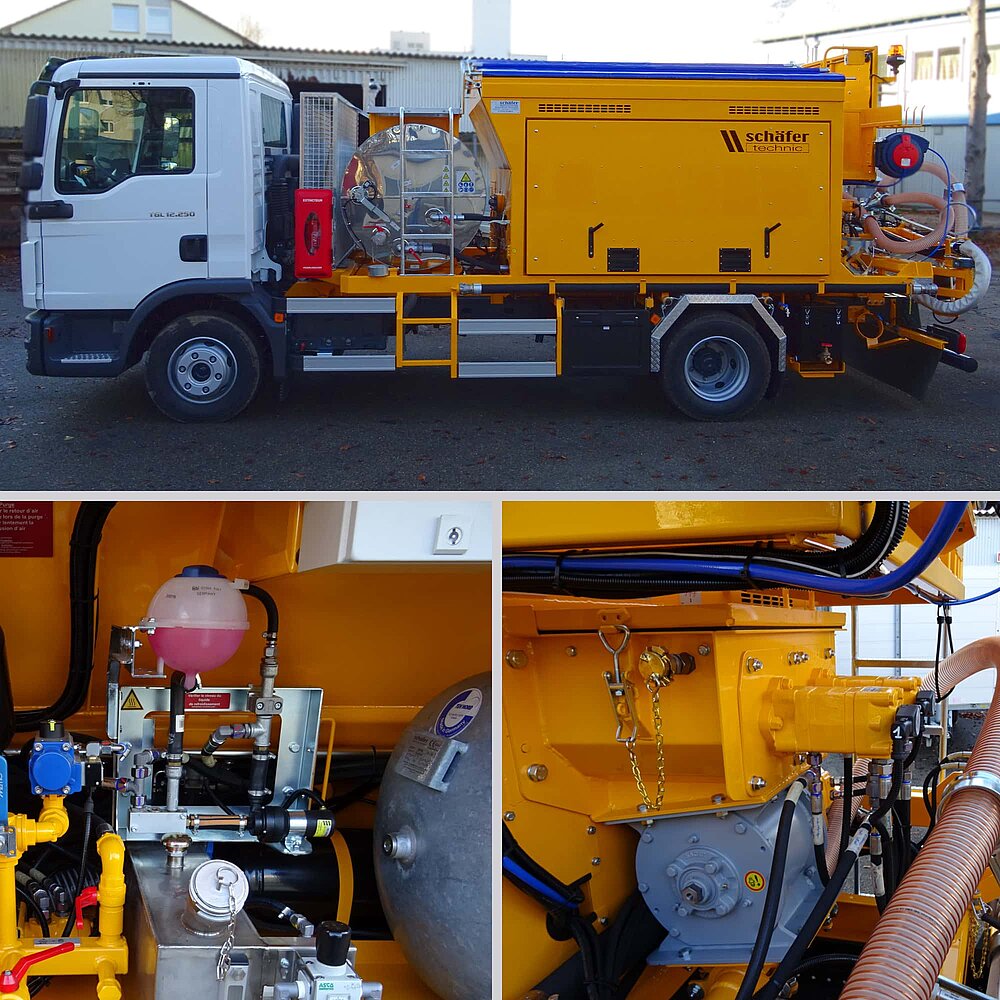

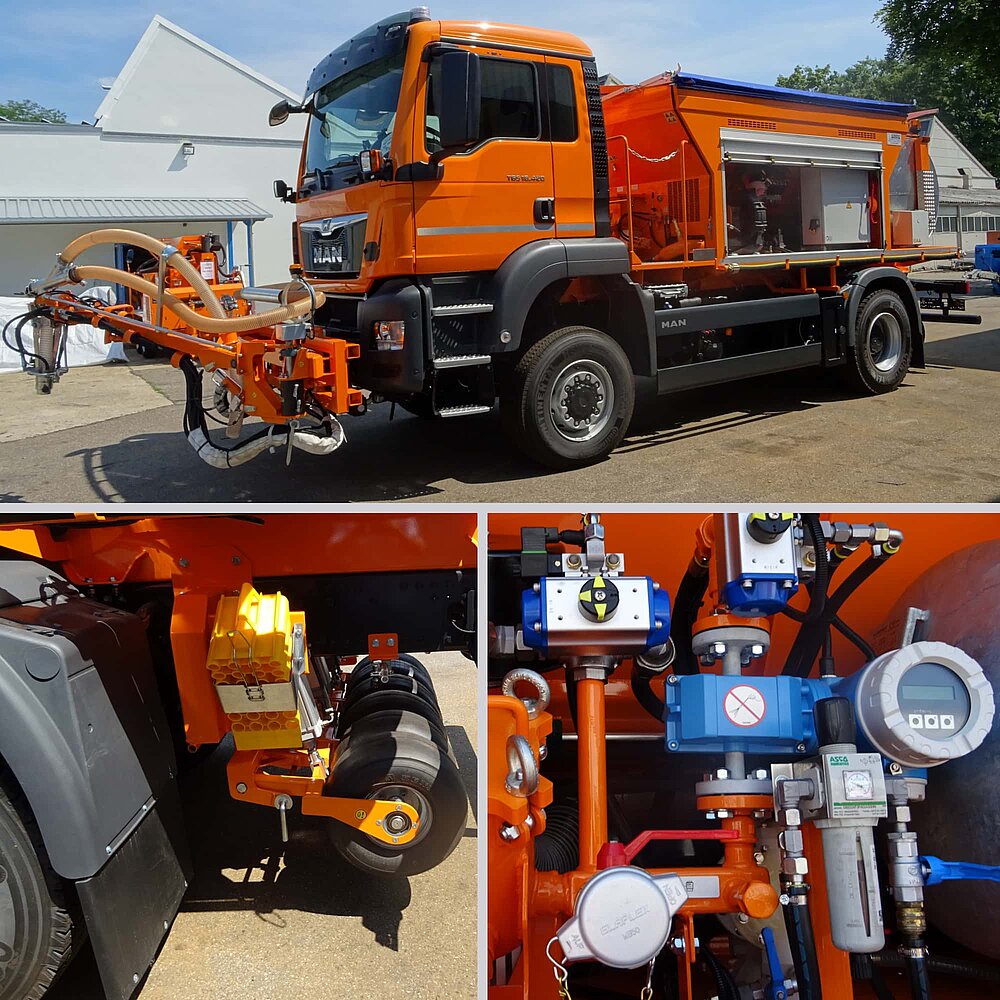

Blow-Patcher type FAH4

  • Fixed installation on truck chassis 18 t
  • Powered by truck engine
  • 2 chipping containers, each 2,000 l
  • Binding agent tank 1,200 l

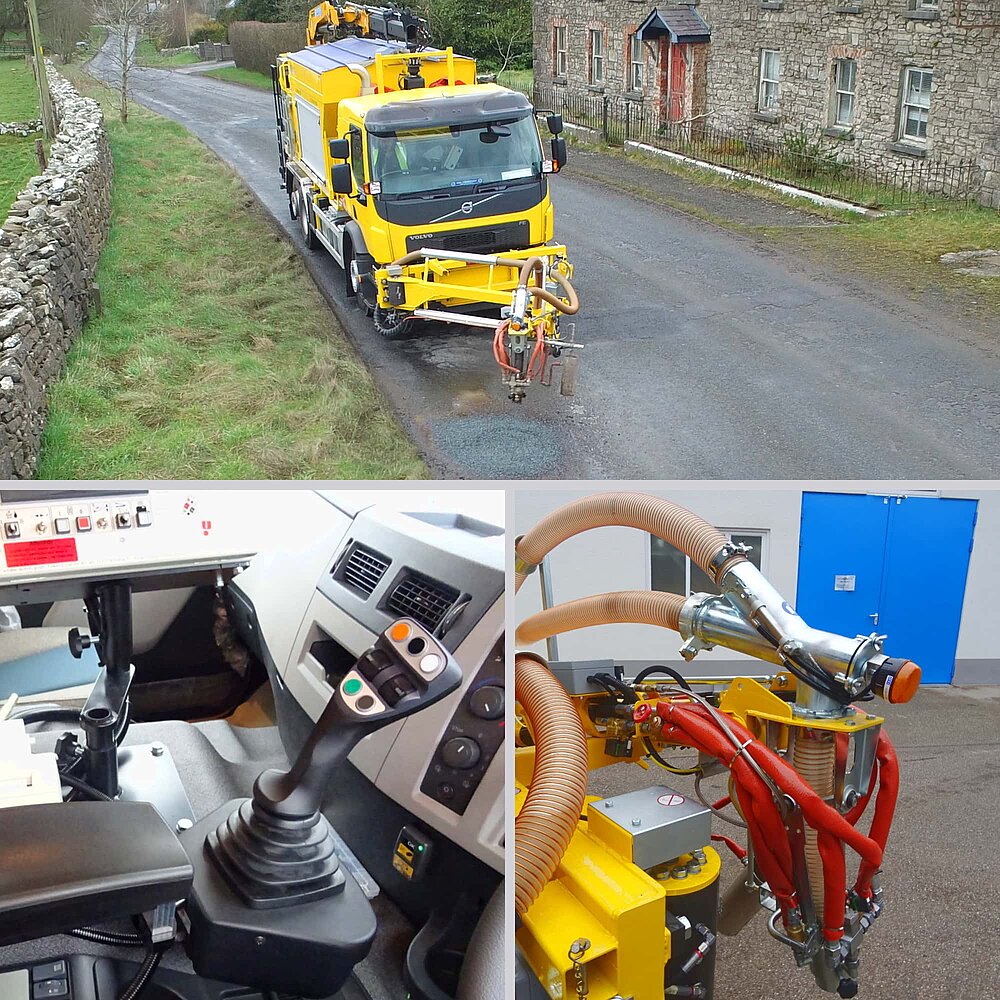

  • Hydraulic front arm with mixing head
  • Automatic levelling front arm
  • Mixing head and functions operated
    by joystick in driver cab
  • Electric oil burner for binding agent
  • Mixing output 25-85 kg/min

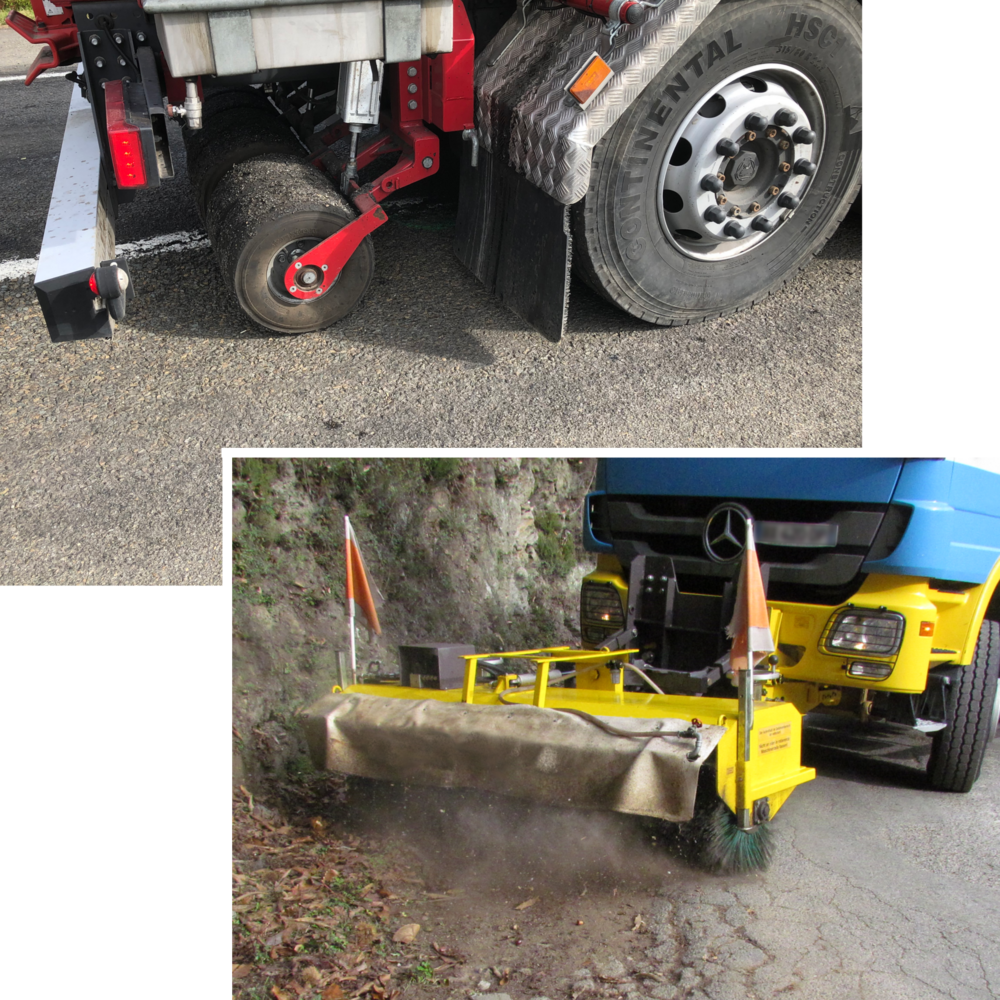

  • Rubber roller for mixture compression
  • Touch-Control:
    • Machine control
    • Automatic dosing
    • Construction site organisation with
      process data acquisition
    • Data transfer (USB, cloud etc.)
    • Print logs

Showroom


Blow-Patcher type A6

  • Fixed installation on truck chassis 26 t
  • Powered by on-board engine
  • 2 chipping containers, each 3,000 l
  • Binding agent tank 1,700 l
  • Manual arm with mixing head
  • Automatic levelling rear arm
  • Mixing output 25-85 kg/min
  • Cleaning function with
    high-pressure water
  • Compressed air gun with hose reel
  • Cleaning nozzle with hose reel
  • Touch-Control:
    • Machine control
    • Automatic dosing
    • Construction site organisation with
      process data acquisition
    • Data transfer (USB, cloud etc.)
    • Print logs

Showroom


Blow-Patcher type FAH6

  • Fixed installation on truck chassis 26 t
  • Powered by on-board engine
  • 2 chipping containers, each 2,000 l
  • Binding agent tank 2,000 l
  • Hydraulic front arm with mixing head
  • Mixing head and functions operated
    by joystick in driver cab
  • Bond coat spray nozzle for binding agent
  • Mixing output 25-85 kg/min
  • Rubber roller for mixture compression
  • Hydraulic crane for loading
  • Touch-Control:
    • Machine control
    • Automatic dosing
    • Construction site organisation with
      process data acquisition
    • Data transfer (USB, cloud etc.)
    • Print logs

Showroom

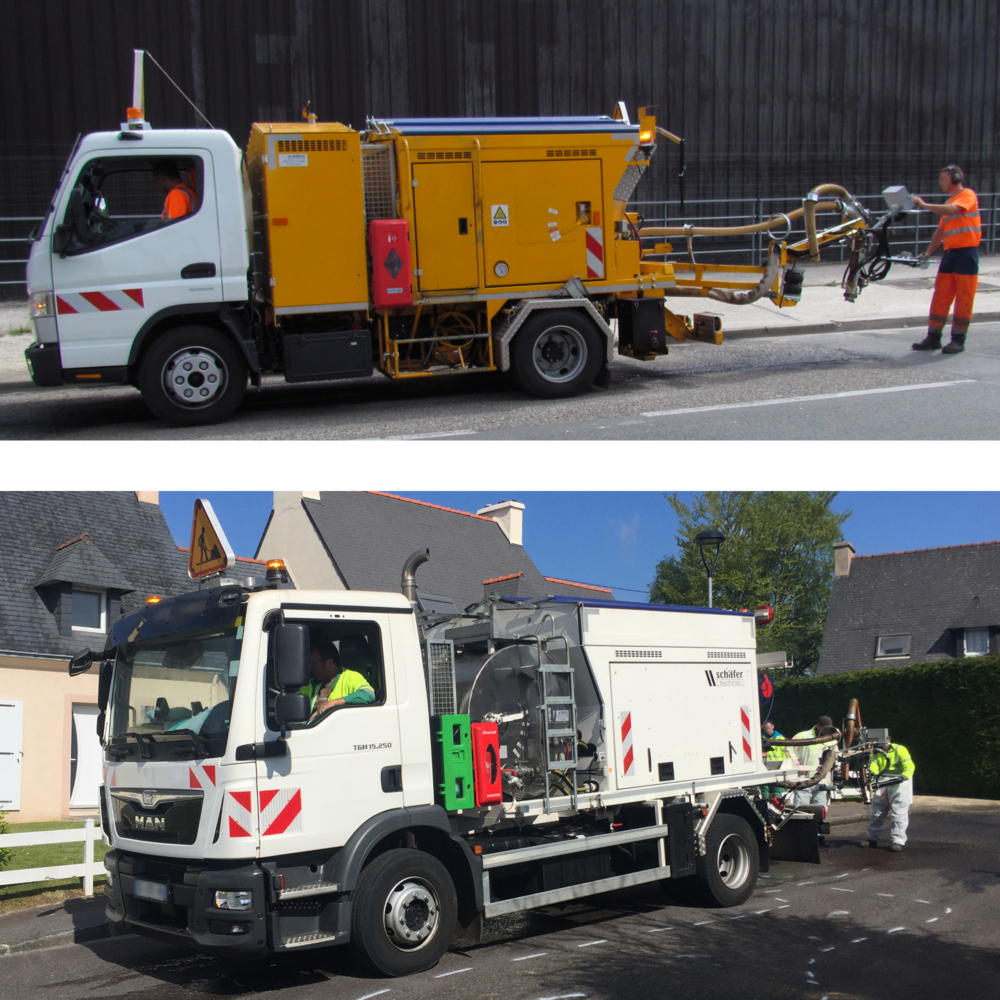

Blow-Patcher type A2

  • Fixed installation on truck chassis 12 t
  • Powered by truck engine
  • 2 chipping containers, each 1,000 l
  • Binding agent tank 800 l
  • Manual arm with mixing head
  • Mixing output 25-85 kg/min
  • Auxiliary water heater for pump, filter
    and mixing head
  • Cleaning function with high-pressure water
  • Compressed air gun with hose reel
  • Cleaning nozzle with hose reel
  • Control using Patch-Control:
    • Machine control
    • Chipping dosing with data acquisition

Showroom

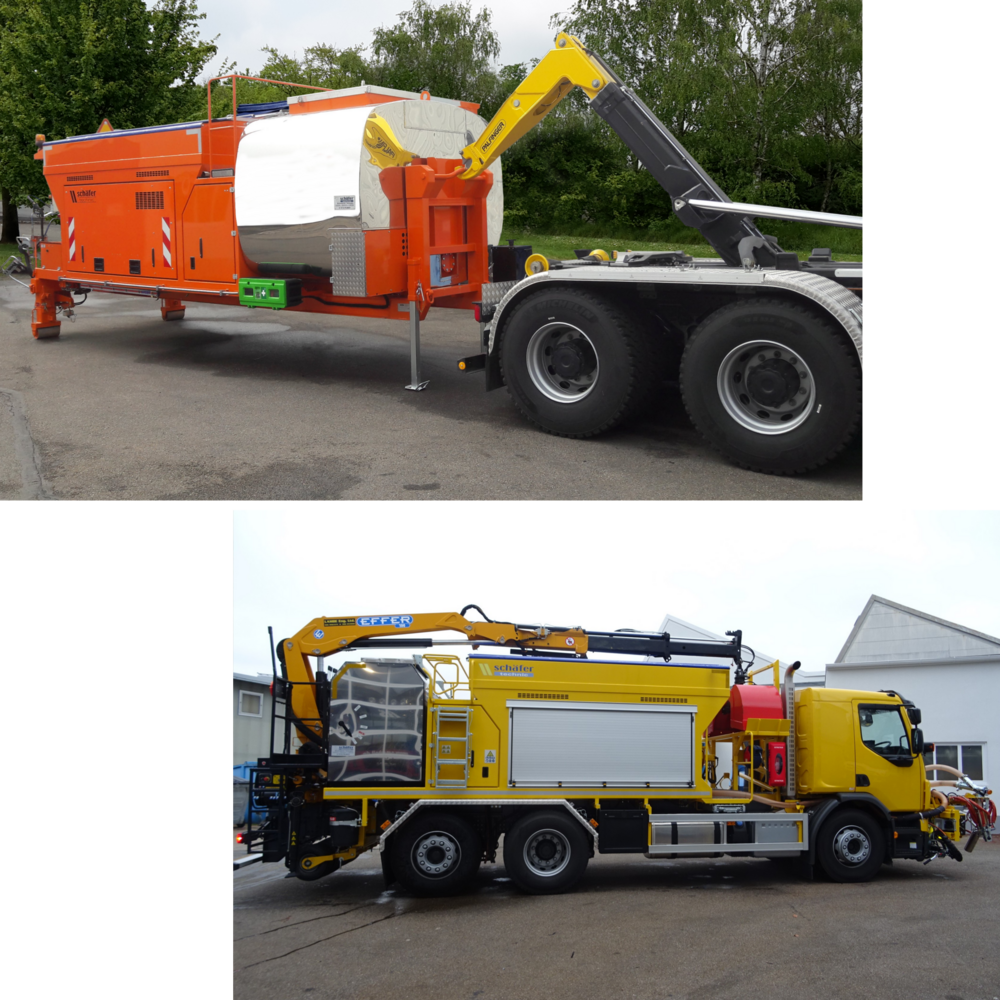

Blow-Patcher type A6

  • Installation on rolling frame
  • Hook change system on
    truck chassis 32 t
  • 2 chipping containers, each 3,000 l
  • Binding agent tank 4,000 l
  • Agitator in binding agent tank
  • Manual arm with mixing head
  • Mixing head with function control
  • Automatic levelling rear arm
  • Mixing output 25-85 kg/min
  • Charge pump for bitumen emulsion
  • Touch-Control:
    • Machine control
    • Automatic dosing
    • Construction site organisation
      with process data acquisition
    • Data transfer (USB, cloud etc.)
    • Print logs

Showroom

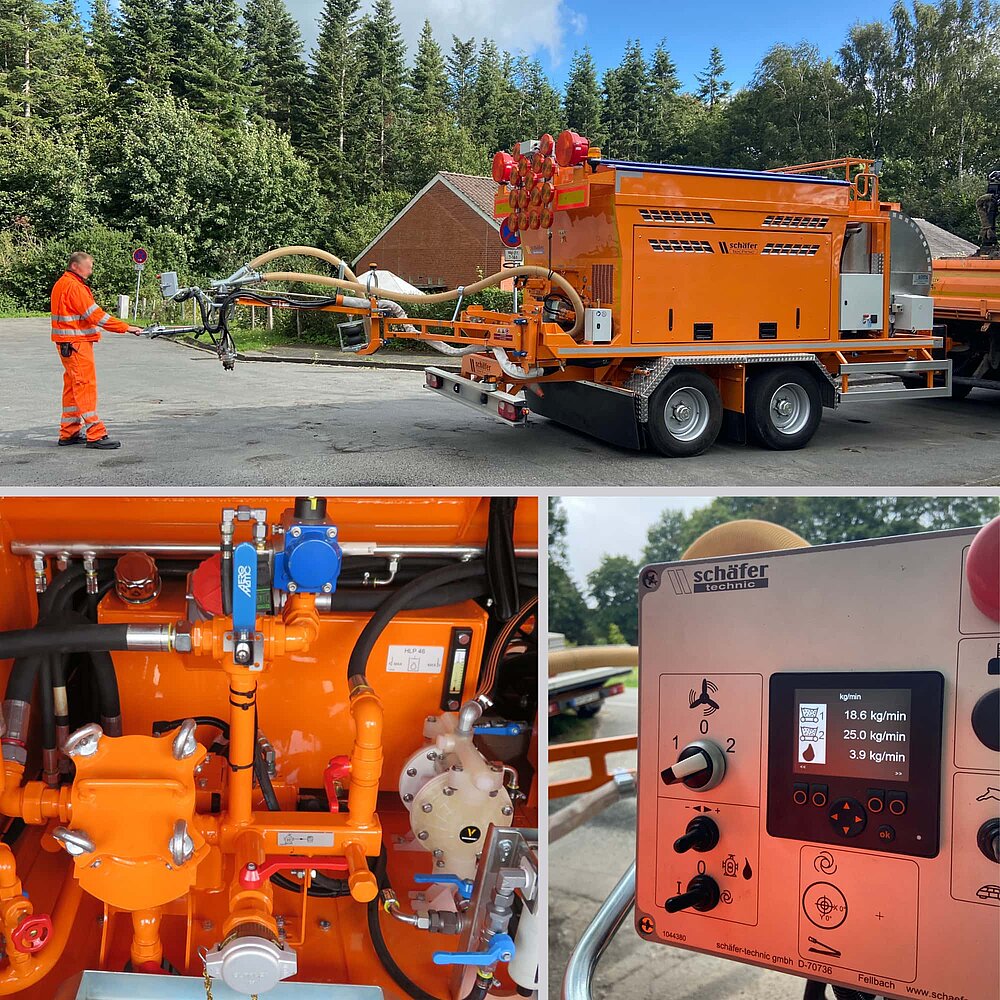

Blow-Patcher type A6

  • Fixed installation on
    special tandem trailer chassis
  • Powered by on-board engine
  • 2 chipping containers, each 2,250 l
  • Binding agent tank 1,500 l
  • Manual arm with mixing head
  • Mixing head with function control
  • Automatic levelling rear arm
  • Electric oil burner for binding agent
  • Mixing output 25-85 kg/min
  • Auxiliary water heater for pump,
    filter and mixing head
  • Hot water heat exchanger in
    the binding agent tank
  • Charge pump for bitumen emulsion
  • Compressed air gun with hose reel
  • Caution lights with directional arrow
  • Patch-Control:
    • Machine Control
    • Chipping dosing with
      data acquisition



For works in cities and metropolises: Trucks with GVM from 7,5 up to 15,0 t - Gas-fueled trucks - Types A1, A2, A3:

For regional entreprises and municipalities: Trucks with GVM from 12,0 up to 18,0 t - types A2, A3, A4:

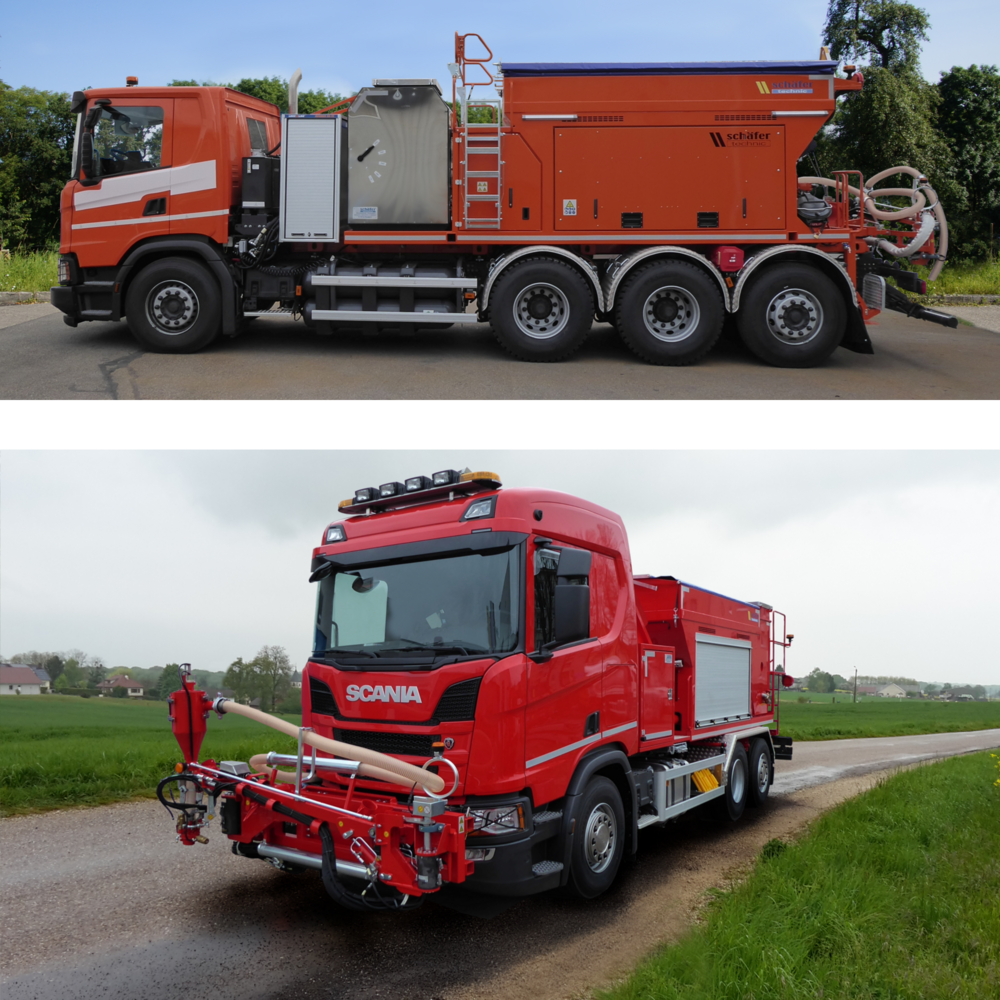

For specialized, regional and national enterprises: Trucks with GVM from 18,0 up to 32,0 t - Types A4, A6, A7

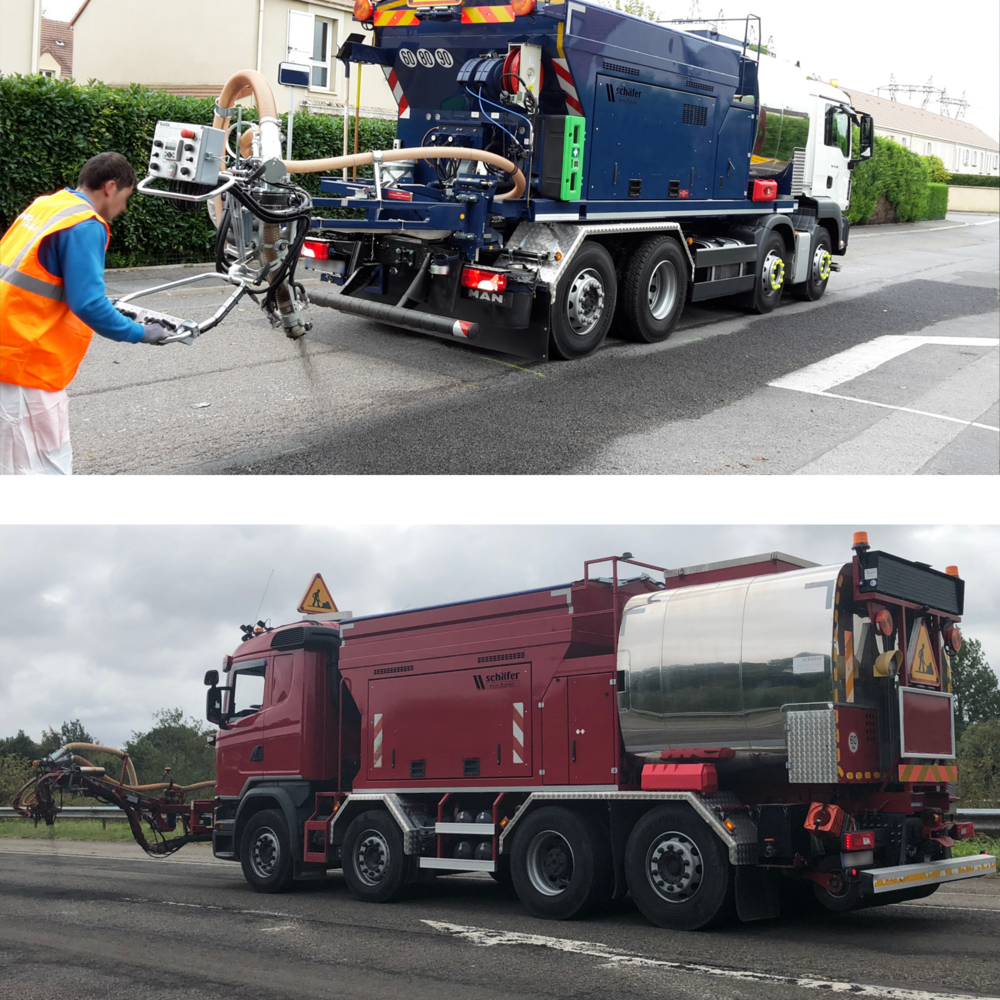

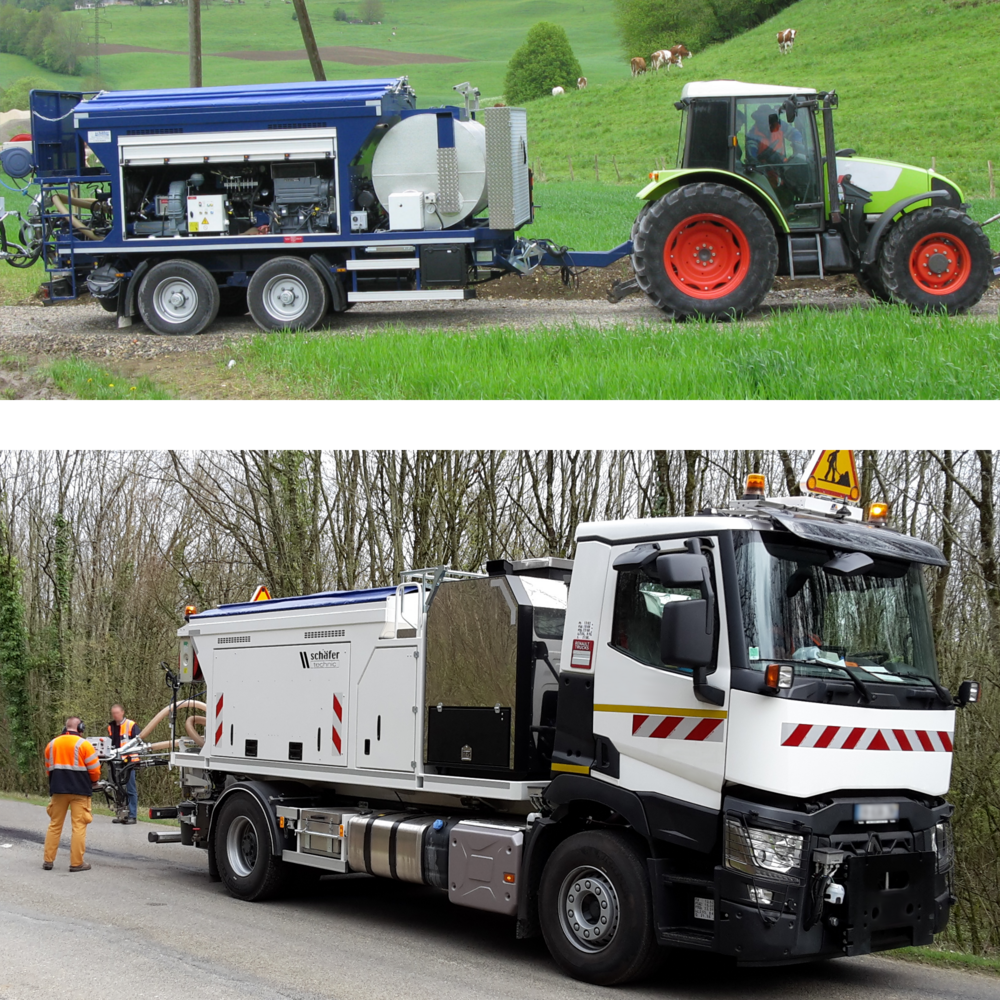

Blow-Patcher in action

REPAIRS TO DAMAGED AREAS

Potholes, frost heave, sinking, eruptions at the edge of the road surface, thinning of the top covering, network cracks in asphalt surfacing and pavement damage can all be repaired with the right machine. Optimum repairs permanently eliminate the damage and maintain road safety. The road surface can also be prepared for further work (e.g. surface treatment).

In addition to the Blow-Patcher, schäfer-technic supplies repair trains and the Mini-Mix for repair work.

→ Method description

→ RZA repair trains | → Mini-Mix
