More than just coating

BSM bond coat sprayers

In close cooperation with our customers we have developed bitumen tack/bond coating machines for optimum layer bonding, joint and flank sealing to meet various requirements for construction site use and processes. The aim is to achieve optimum quality and efficiency with a tack/bond coating machine. By professionals - for professionals.

The schäfer-technic BSM tack/bond coating machines transport, temper and spray all standard road construction bitumen emulsions with a non-hazardous classification.

The bitumen tack/bond coating machines meet all the requirements of the Developer Ordinance and can be configured with tank capacities of up to 12,000 litres and spray widths up to 4.6 m in line with the requirements.

Our more compact machines are also suitable for work on narrow roads and cycle paths.

The correctly metered binding agent quantity is a prerequisite for good layer bonding and a long road surface service life. Metering controls from schäfer-technic provide reliable, fast and precise regulation.
The touch control enables the relevant technical data such as spray quantity, spray pressure, temperature and output area to be automatically retrieved, configured and processed.

BSM types have a huge range of adaptation and customisation options.
Additional unit spaces or tanks for fuels or AdBlue, an expansion for dope/additive spraying on the spray bar or front attachments, e.g. for a sweeper, make schäfer-technic BSM genuine all-rounders on your construction site.

Combination with the schäfer edge spraying device provides additional options: Middle seam spraying or flank sealing can now also be carried out with the tack/bond coating machine.

PREVNEXT

Showroom

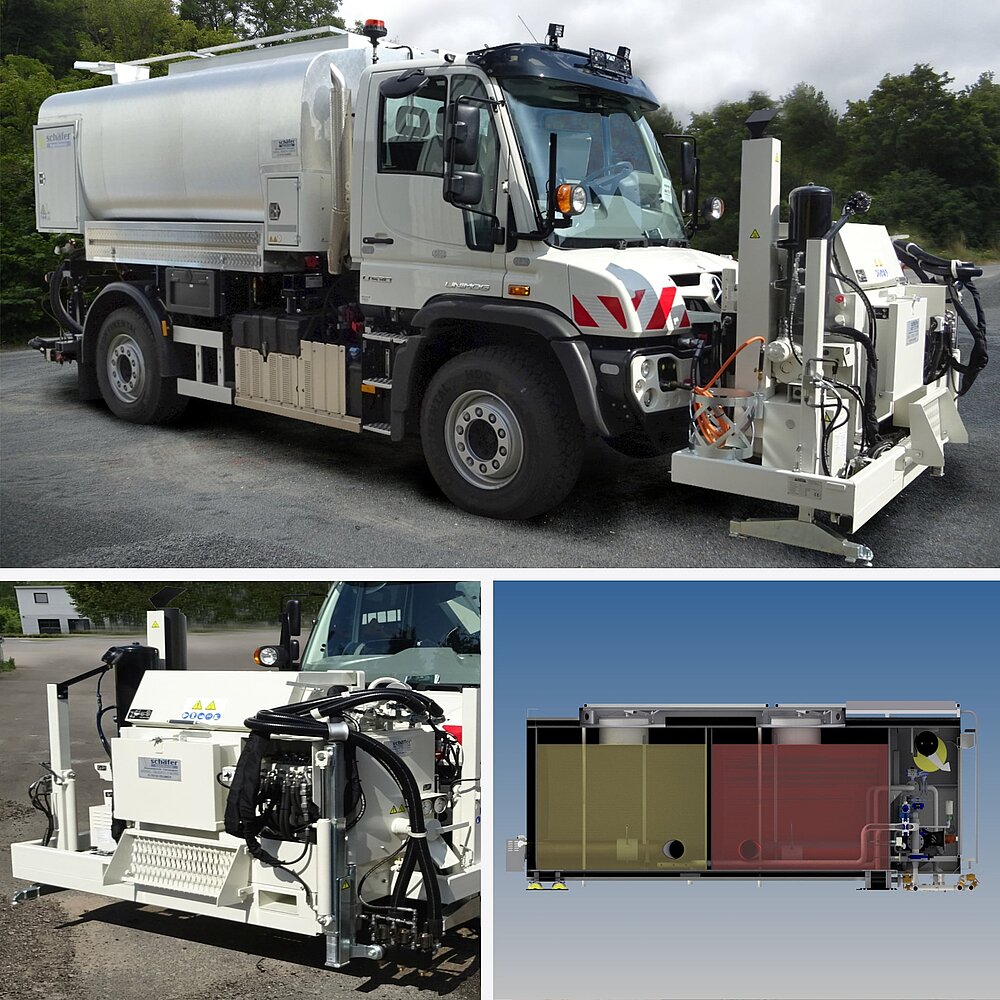

BSM-P 2500/2000 DUO + SKS-F 200TH
Bitumen bond coat sprayer with edge sprayer

  • Duo tank:
    • Binding agent 1: 2,500 L
    • Binding agent 2: 2,000 L
  • Agitator in the tank
  • Dual flame tube heating
  • Working width approx. 4,600 mm
  • Automated pump unit
  • Inductive flowmeter
  • Auxiliary heater for bitumen pump
  • Rear view monitor
  • Hose reel for manual spraying hose
  • Touch-Control:
    • Machine control
    • Automatic dosing
    • Data transfer (USB, cloud etc.)
    • Print logs
  • Edge sprayer:
    • Unit for interchangeable front plate
    • For middle seam and flank sealing
    • Binding agent tank 200 l
    • Thermal oil heating
    • Electrically heated hoses and bar

Showroom

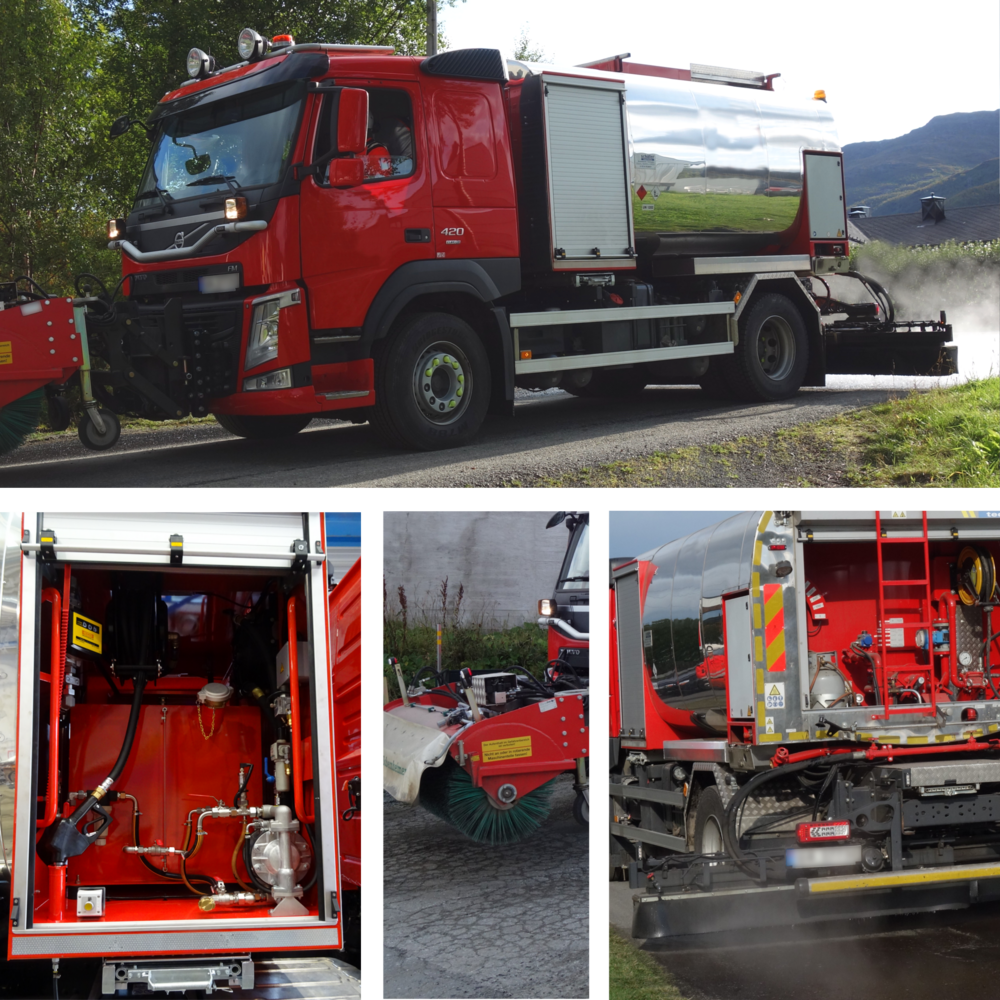

BSM-P 5000/1500 + 600 L Diesel
Bitumen bond coat sprayer with diesel tank station

  • Split tank:
    • Binding agent tank 5,000 l
    • Stainless steel water tank 1,500 l
  • Flame tube heater
  • Working width approx. 4,600 mm
  • Automated pump unit
  • Inductive flowmeter
  • Rear view monitor
  • Hose reel for manual spraying hose
  • Hose reel for water
  • Special unit space
    • Diesel station 600 l with dispensing unit
  • Dope sprayer
    • Dope spray bar on main bar
    • Dope additive tank 160 l, stainless steel V2A
  • Touch-Control:
    • Machine control
    • Automatic dosing
    • Data transfer (USB, cloud etc.)
    • GPS data acquisition
    • Construction site log with
      process data acquisition

Showroom

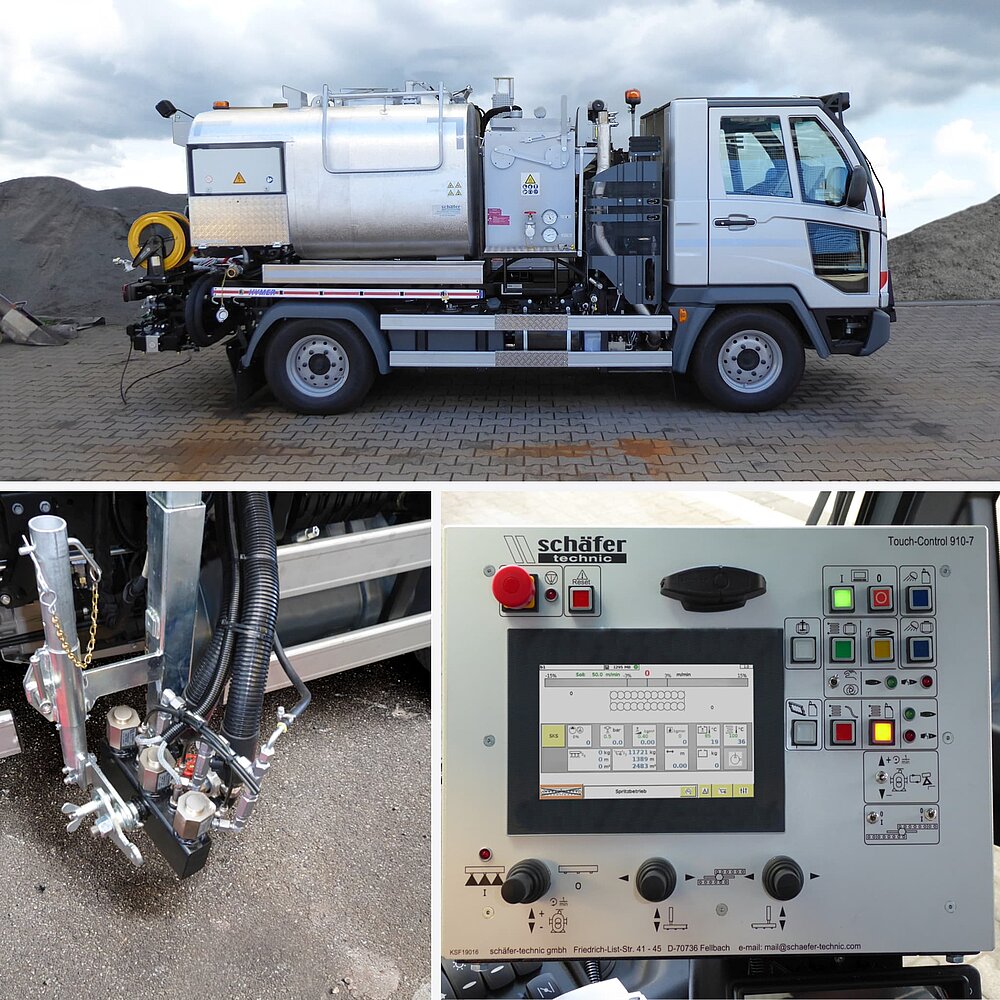

BSM-P 1200 + SKS 100
Bitumen bond coat sprayer with edge sprayer

  • Binding agent tank 1,200 l
  • Agitator in the tank
  • Flame tube heater
  • Working width approx. 3,200 mm
  • Inductive flowmeter
  • Rear view monitor
  • Dope sprayer
    • Dope spray bar on main bar
    • Dope additive tank 160 l, stainless steel V2A
  • Touch-Control:
    • Machine control
    • Automatic dosing
    • Data transfer (USB, cloud etc.)
    • Construction site log with
      process data acquisition
  • Edge sprayer:
    • For middle seam and flank sealing
    • Binding agent tank 100 l
    • Electrically heated hoses and bar

Showroom

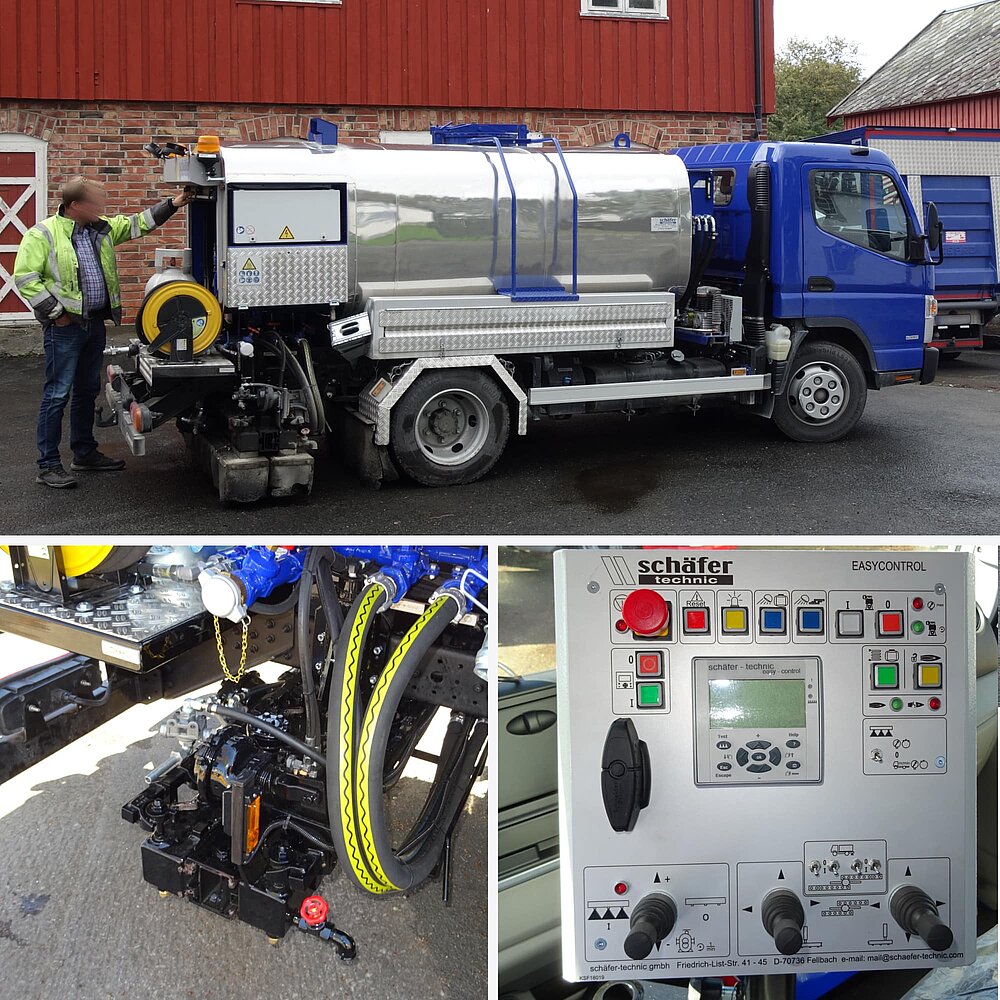

BSM-P 2.500
Bitumen bond coat sprayer

  • Binding agent tank of stainless steel 2,500 l
  • Hydraulically driven agitator in the
    binding agent tank
  • Flame tube heater
  • Working width approx. 4,200 mm
  • Automated pump unit
  • Inductive flowmeter
  • Rear view monitor
  • Hose reel for manual spraying hose
  • Easy Control:
    • Machine control
    • Automatic dosing

Showroom

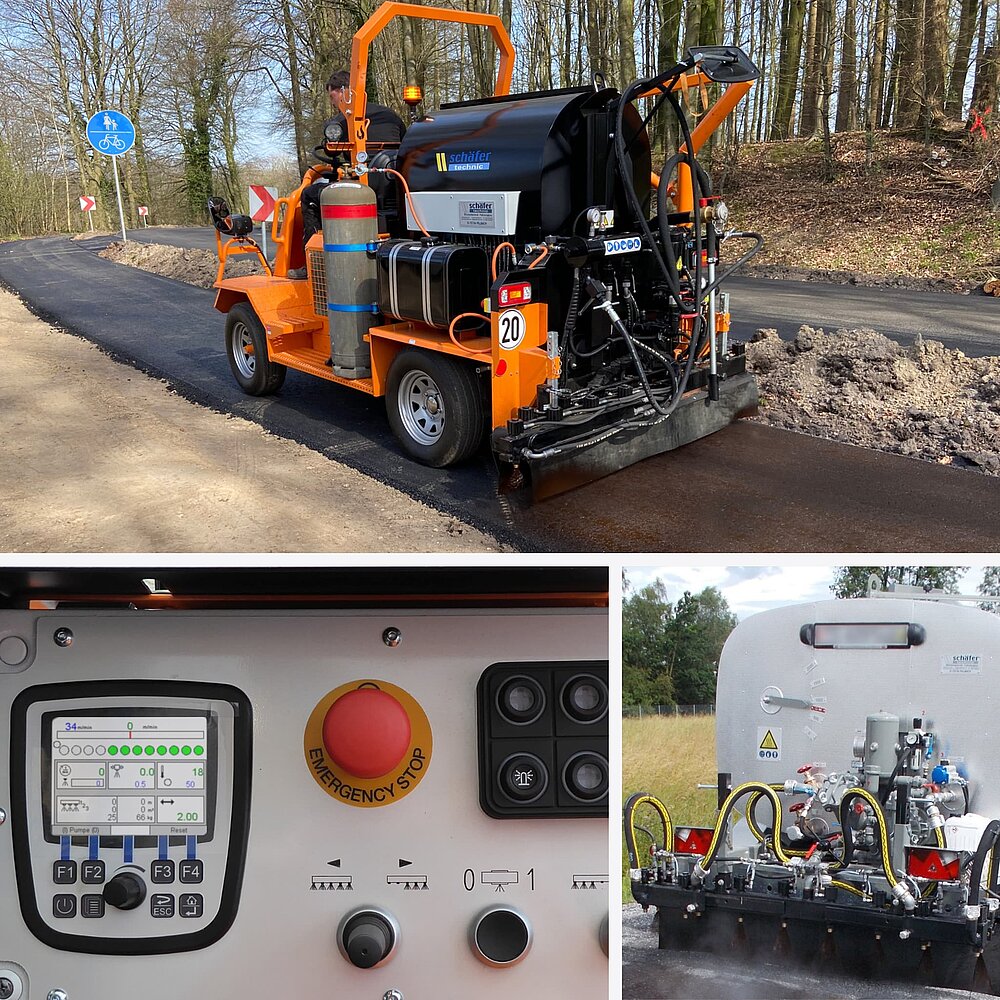

BSM-SF 1000
Compact self-driving bitumen bond coat sprayer

  • Fixed installation on special chassis
    • Width 2,000 mm
  • Self-driving machine with
    approval for use on public roads
  • Binding agent tank, insulated, 800 l
    • additional 200 l drum hood
    • Hydraulic drum crane
  • Gas heating with temperature regulation
  • Control using schäfer-technic Spray-Control
  • Variable spray width up to 3,000 mm
  • Extensions as front attachments possible:
    • Edge sprayer
    • Front sweeper




BSM-A 2000
Compact bitumen bond coat sprayer

  • Binding agent tank, insulated, 2,000 l
  • Gas heating with temperature regulation
  • Attachment or trailer model
    • Trailer with tandem axle
    • Machine with approval for use on public roads
    • Structure with attachment frame
  • Spray bar extends up to 3,300 mm

Showroom

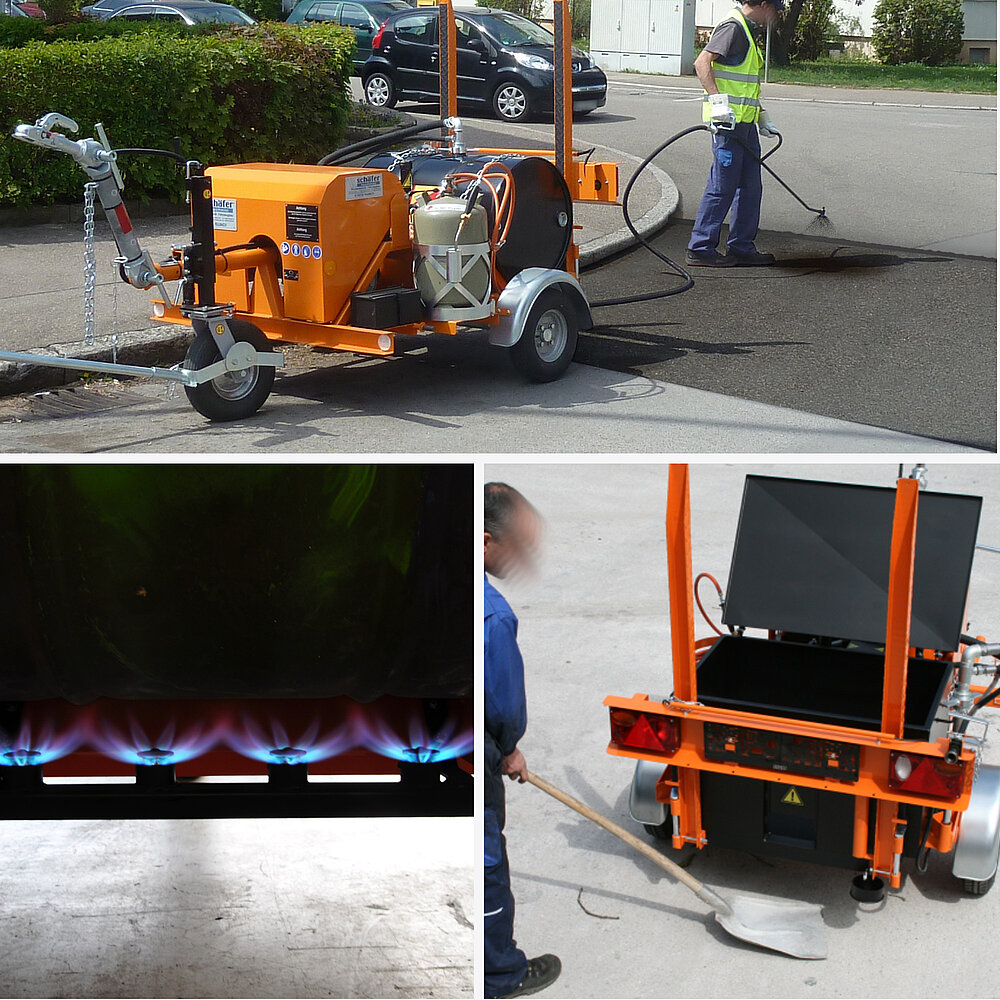

BSM-AF 200
Bitumen bond coat sprayer for manual work

  • Manual spraying machine for 200 L barrels
  • Optional installation of a 200 L
    tank in replacement of the barrel
  • Suitable for all commonly used bitumen
    emulsions as well as polymer bitumen emulsions
  • Single-axle trailer with a gross vehicle weight of 750 kg
  • Special gas heating system with 4 flames
  • Pump unit for manual tack coat, circulation and transfer
  • Diesel engine operation with own fuel tank
  • Support wheel with crank handle
  • Ramp for easy loading

Tack/bond coating machines in action

PREPARATION FOR LAYER BONDING FOR ASPHALT APPLICATION

A secure bond between the individual asphalt layers is a key requirement to ensure asphalt structures have a long service life. A full and permanent bond ensures that the asphalt layer structure can support the required loads in the long term.

With a wide range of different equipment options for every site size and requirement, schäfer-technic can supply the right machine. As well as bond coat sprayers, SKS machines or a combination are suitable for this kind of method. Bitumen tank trailers transport and store the binding agent.

→ MORE ABOUT THE METHOD

→ SKS edge spraying machines | → BTA bitumen tank trailers

Direct contact

Direct contact
PREVNEXT

Machines shown

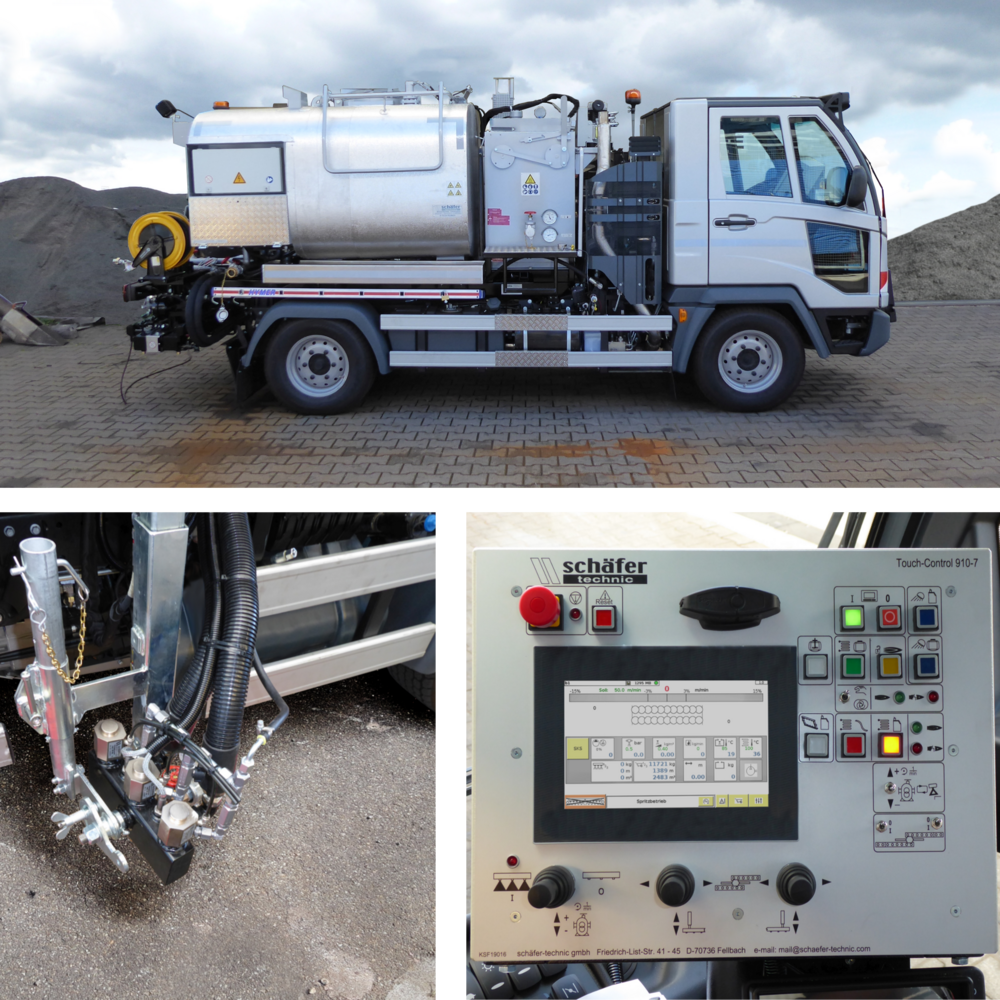

Bond-coating machine BSM-P 2500

  • Mounting on chassis Mitsubishi FUSO 7.5 t
  • Binding agent tank for approx. 2,500 l
  • Agitator in the tank
  • Flame tube heater
  • Working width up to approx. 4,200 mm
  • Jet spacing 150 mm
  • Bitumen pump with output 250 l/min
  • Rear view monitor
  • Inductive flowmeter
  • Automated pump unit
  • Hose reel for manual spraying hose 10 m
  • Touch-Control:
    • Machine control
    • Metering control
    • Weight display
    • Data transfer (USB, cloud etc.)
    • Needle printer
  • etc.

Machines shown

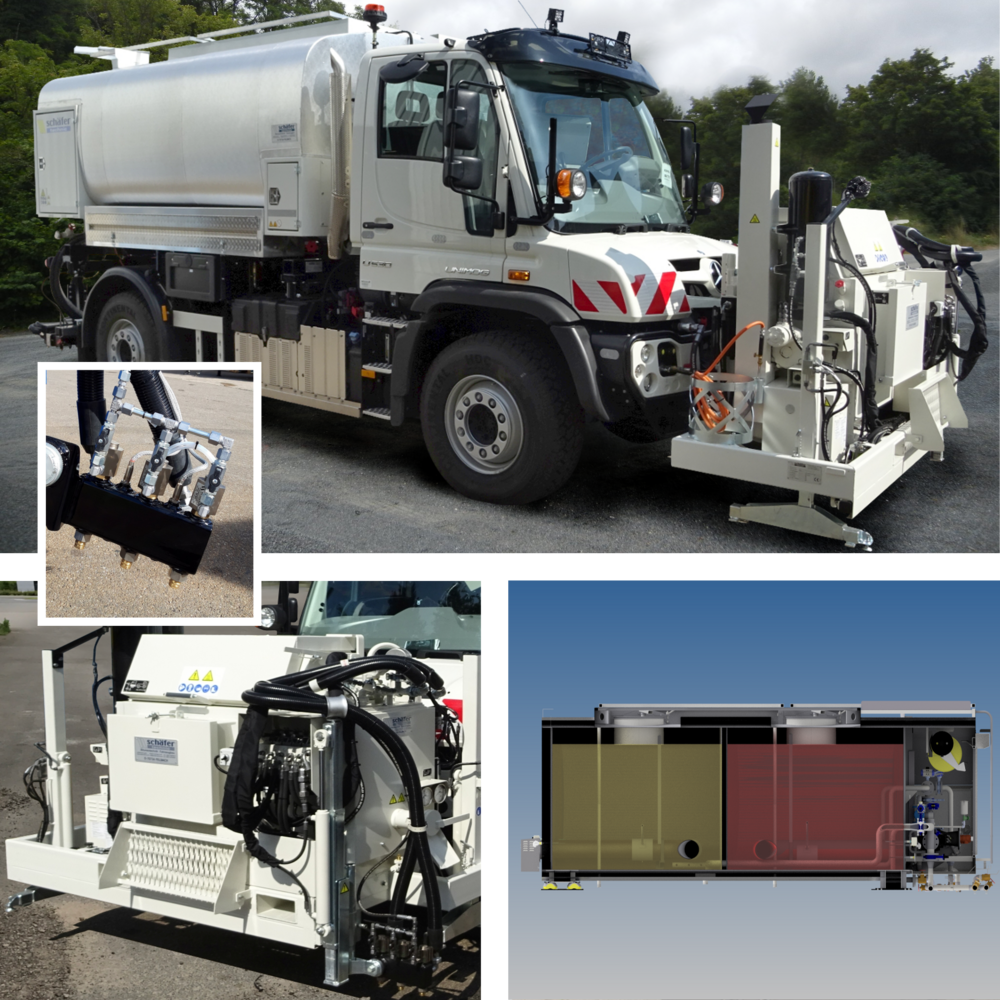

Bitumen bond coat sprayer with edge sprayer
BSM-P 2500/2000 DUO + SKS-F 200TH

  • Double binding agent tank for two types: 2,500/2,000 L
  • Agitator in the tank
  • Dual flame tube heating
  • Working width approx. 4,600 mm
  • Automated pump unit
  • Inductive flowmeter
  • Bitumen pump with 350 l/min output
  • Auxiliary heater for bitumen pump
  • Rear view monitor
  • Hose reel for manual spraying hose 10 m
  • Touch-Control:
    • Machine control
    • Metering control
    • Weight display
    • Data transfer (USB, cloud etc.)
    • Needle printer
  • Edge sprayer:
    • Unit for interchangeable front plate
    • For middle seam and flank sealing
    • Binding agent tank 200 l
    • Thermal oil heated
    • Hoses and bar electrically heated to 180 °C
  • etc.

Machines shown

Bitumen bond coat sprayer with edge sprayer
BSM-P 5000 + SKS 200

  • Binding agent tank 4,500 l
  • Flame tube heater
  • Working width approx. 4,600 mm
  • Single nozzle control
  • Automated pump unit
  • Inductive flowmeter
  • Bitumen pump with 250 l/min output
  • Rear view monitor
  • Hose reel for manual spraying hose 10 m
  • Touch-Control:
    • Machine control
    • Metering control
    • Weight display
    • Data transfer (USB, cloud etc.)
    • Needle printer
  • Edge sprayer:
    • Unit with 2 bars: left and right
    • For middle seam and flank sealing
    • Binding agent tank 200 l
    • Hoses and bar electrically heated to 180 °C
  • etc.

Machines shown

Bitumen bond coat sprayer with edge sprayer
BSM-P 1200 + SKS 100

  • Binding agent tank 1,200 l
  • Agitator in the tank
  • Flame tube heater
  • Working width approx. 3,200 mm
  • Inductive flowmeter
  • Bitumen pump with 250 l/min output
  • Rear view monitor
  • Dope sprayer
    • Dope spray bar on main bar
    • Dope additive tank 160 l, stainless steel V2A
  • Touch-Control:
    • Machine control
    • Metering control
    • Weight display
    • Data transfer (USB, cloud etc.)
    • Needle printer
  • Edge sprayer:
    • For middle seam and flank sealing
    • Binding agent tank 100 l
    • Hoses and bar electrically heated to 180 °C
  • etc.

Machines shown

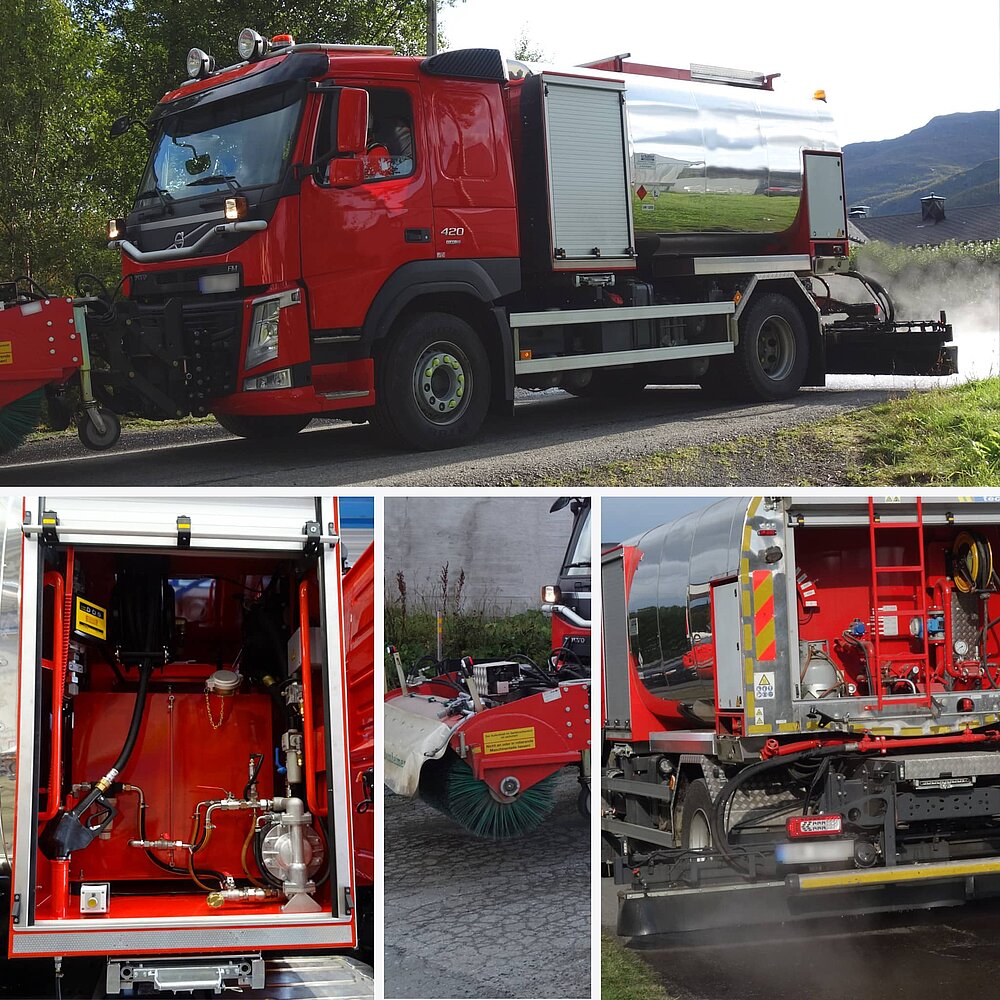

Bitumen bond coat sprayer with diesel tank station
BSM-P 5000/1500 + 600 l diesel

  • Split tank:
    • 5,000 l binding agent tank
    • 1,500 l stainless steel water tank
  • Flame tube heater
  • Electric heating rod 2.5 kW
  • Working width approx. 4,600 mm
  • Jet spacing 150 mm
  • Automated pump unit
  • Inductive flowmeter
  • Bitumen pump with 250 l/min output
  • Rear view monitor
  • Hose reel for manual spraying hose 10 m
  • Hose reel for water 10 m
  • Touch-Control:
    • Machine control
    • Metering control
    • Weight display
    • Data transfer (USB, cloud etc.)
    • GPS data acquisition
    • Needle printer
  • Special unit space
    • Diesel station
    • Diesel tank 600 l
    • Dispensing unit with hose reel and gun
  • Dope sprayer
    • Dope spray bar on main bar
    • Dope additive tank 160 l, stainless steel V2A
  • etc.
